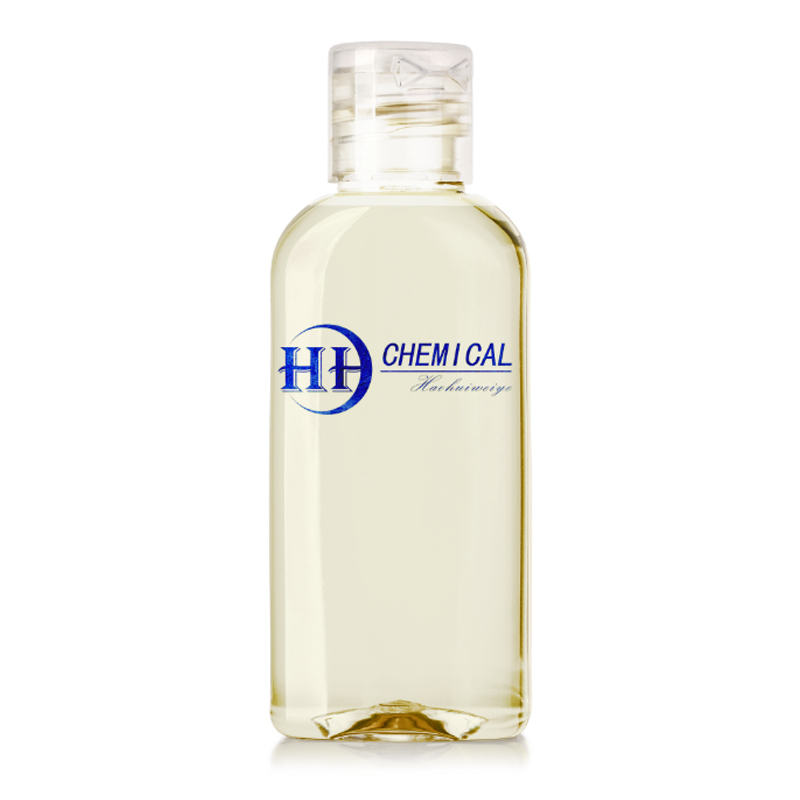

HH-6500V Gear Oil VII Viscosity Index Improver PMA Polymethacrylate
HH-6500V Polymethacrylate-type Viscosity Index Improver has excellent shear stability with narrow MW distribution, meeting the requirements of new Chinese standards, and it can effectively inhibit the wax crystallization with excellent low temperature performance, which has multiple effects of excellent depressing pour point, increasing viscosity and index performances.
Details
HH-6500V Polymethacrylate-type Viscosity Index Improver
Description：
HH-6500V is polymethacrylate solution in the deeply refined mineral oils. It is a high-quality viscosity index improver with high shear stability specially used for long-span vehicle gear oils, internal combustion engine oil, transmission oils, CVTF, and ATF. HH-6500V can be easily soluble in all the mineral oils and synthetic base oils. And it has a good compatibility with other traditional lubricating oil additives.
HH-6500V has excellent shear stability with narrow MW distribution, meeting the requirements of new Chinese standards, and it can effectively inhibit the wax crystallization with excellent low temperature performance, which has multiple effects of excellent depressing pour point, increasing viscosity and index performances.
Characteristics：
Item | Typical Value | Test Method |
Appearance | Colorless or light yellow transparent thick liquid | Visual |
KV,100℃mm2/s | 395 | GB/T 265 |
Color | 0.5 | GB/T 6540 |
Density(20℃ ) kg/m3 | 920 | SH/T 0604 |
Flash Point（COC）℃ | 160 | GB/T 3536 |
SSI | KRL 20h 9.66 | CECL-45-A-99 |
Thickening ability of HH-6500V polymethacrylate type Viscosity index improver at 100℃
100N (Shell) | 150N （H） | 500N (S-Oil) | |
HH-6500V, %wt | 0 5 10 | 0 5 10 | 0 5 10 |
KV,100℃, mm2/s | 4.16 5.09 6.38 | 5.32 6.53 8.37 | 12.25 14.81 17.21 |
Recommended formulation of HH-6500V in vehicle gear oils
75W/90 | 75W/90 | |
32 oil | 56.5 | 66.5 |
HH-6500V | 29.5 | 29 |
1038 | 4.5 | 4.5 |
Shell GTL100 | 10 | 0 |
amount | 100 | 100 |
KV,100℃,mm2/s | 16.51 | 16.83 |
KV,40℃,mm2/s | 100.2 | 104.9 |
VI | 179 | 175 |
Pour Point,℃ | -40 | -40 |
KRL Viscosity after shearing | ||
14.5 | 14.6 | |
KRL rate of Shear falling, % | 12.7 | 13.25 |
Brookfield viscosity(-40℃) | 115200 | 146000 |
