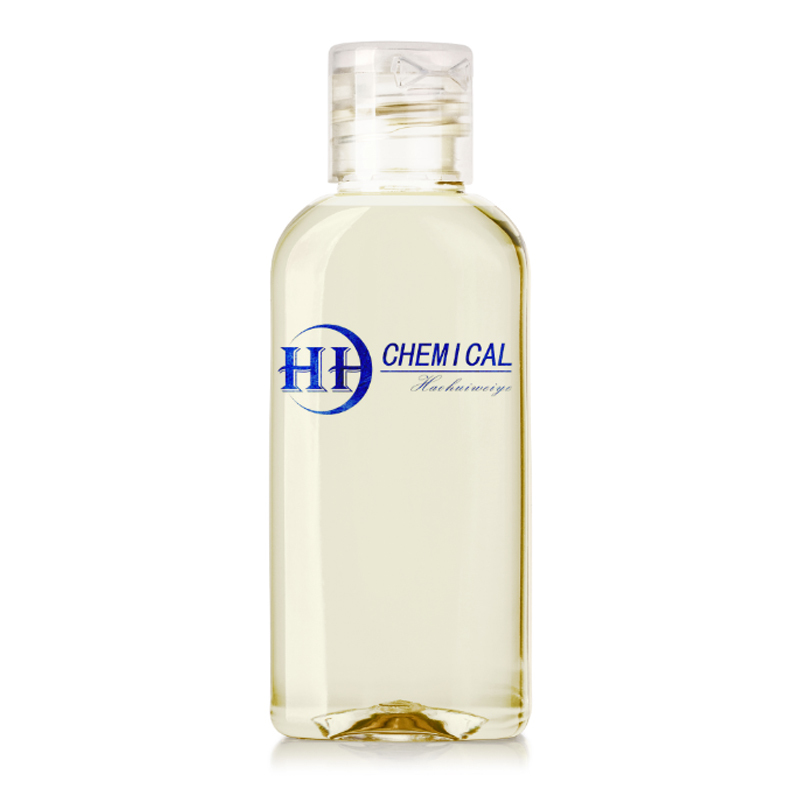

HH-6300V PMA Polymethacrylate Hydraulic Oil Viscosity Index Improver
G6300V PMA Polymethacrylate VII has excellent low temperature fluidity, excellent shear stability, and can effectively improve the viscosity index with narrow MW distribution, and It can inhibit the wax crystallization, and it has a good effect on depressing pour points, which has excellent filtering and demulsification performances.
Details
HH-6300V Polymethacrylate PMA-Type VII Viscosity Index Improver
Description：
HH-6300V is polymethacrylate solution in the deeply refined mineral oils HH-6300V is high-quality viscosity index improver with high shear stability specially designed for hydraulic fluids.
HH-6300V viscosity index improver has a wide range of applications, which is widely used in various kinds of base oils. It has excellent shear stability, low-temperature performances and strong thickening and index increasing abilities.
HH-6300V has excellent low temperature fluidity, excellent shear stability, and can effectively improve the viscosity index with narrow MW distribution, and It can inhibit the wax crystallization, and it has a good effect on depressing pour points, which has excellent filtering and demulsification performances.
Applications：
HH-6300V is mainly used in blending hydraulic oils, specially for the hydraulic oils with low temperature and high viscosity index, as the main component in hydraulic oil formula, which has the double effect of increasing viscosity index and depressing pour points under the condition of guaranteeing the shear stability, HH-6300V can keep the viscosity of hydraulic oils being stable, staying best in the big temperature, and performing well with the highest running efficiency, reducing the energy consumption, protecting the equipment and improving the performances.
Characteristics：
item | Typical Value | Test Method |
appearance | Colorless or light yellow thick liquid | visual |
Kinematic Viscosity,100，℃,mm2/s | 1354 | GB/T 265 |
color | 0.5 | GB/T 6540 |
Density (20°C ) kg/m3 | 920 | SH/T 0604 |
Flash Point,℃ | 180 | GB/T 3536 |
SSI | 33.9(KRL 20h ) | CECL-45-A-99 |
7.3 (Diesel nozzle 250 cycles) | SH/T0103 | |
4.4 (Diesel nozzle 40 cycles) |
Data of thickening, index increasing and pour point depressing performances of HH-6300V polymethacrylate viscosity index improver in modern 150N
VI00, mm2/s | V40, mm2/s | VI | VI increased | Pour point，℃ | |
0% | 5.32 | 30.59 | 106 | -25 | |
1% | 5.89 | 32.5 | 126 | 20 | -47 |
3% | 6.89 | 36.65 | 150 | 44 | -47 |
5% | 7.94 | 44.04 | 154 | 48 | -47 |
Recommended formulation of HH-6300V in the hydraulic oils with low temperature and high viscosity index
32 | 46 | 68 | |||
100N | 93.15 | 62.2 | 35.4 | ||
Dosage％ | 500N | 30.95 | 57.75 | ||
HH-6300V | 6 | 5.5 | 6 | ||
Functional Additive | 0.85 | 0.85 | 0.85 | ||
Test Method | |||||
KV,40℃mm2/s | 30.60 | 43.0 | 68.35 | GB/T265 | |
KV,100℃mm2/s | 6.915 | 8.99 | 12.18 | GB/T265 | |
VI | 197 | 180 | 177 | GB/T1995 | |
POUR Point,℃ | -50 | -40 | -40 | GB/T3535 | |
flash Point（COC）℃ | 208 | 218 | 232 | GB/T 3536 | |
Demulsibility(40-37-3)54℃,min | 5'40〃 | 4'10〃 | 5'40〃 | GB/T 7305 | |
shear stability( 250Times cycles KV changed，% | 1.25 | 1.2 | 1.28 | SH/T0103 | |
HH-6300V polymethacrylate viscosity index improver in the recommended formulation of the shock absorber oil
I | II | III | ||
60N | 47 | 49.18 | 70.63 | |
70N | 43.68 | 45 | functional additive 22.85 | |
dosage ％ G6300V | 5 | 4.5 | 5.2 | |
Functional additive | 1 | 1 | 1 | |
HH-886P | 0.3 | 0.3 | 0.3 | |
Non silicon defoaming additive | 0.02 | 0.02 | 0.02 | |
Test Method | ||||
KV,40℃ mm2/s | 17.74 | 13 | 15 | GB/T265 |
KV,100℃ mm2/s | 4.59 | 3.82 | 4.42 | GB/T265 |
VI | 190 | 205 | 230 | GB/T1995 |
Pour Point，°C | -58 | -59 | -62 | GB/T3535 |
Flash Point(COC）℃ | 172 | 170 | 165 | GB/T 3536 |
Thickening ability of HH-6300V polymethacrylate Type viscosity index improver
WON (Shell) | 150N （Modern） | 500N (S-Oil) | |||||||
HH-6300V, wt% | 0 | 5 | 10 | 0 | 5 | 10 | 0 | 5 | 10 |
KV，100℃ mm2/s | 4.16 | 6.244 | 8.472 | 5.32 | 7.94 | 11.89 | 12.25 | 16.62 | 22.68 |
